Soft Wiring
Fast. Flexible. Connected.

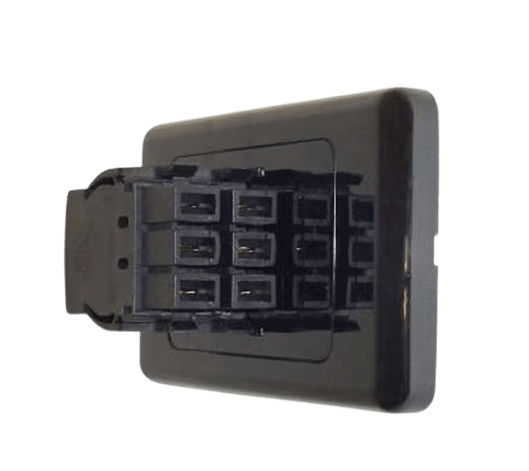

The SW & NW Series from CMS Electracom redefine power distribution with speed, safety, and simplicity. Featuring integrated AS/NZS61535.1-compliant softwiring couplers, these outlets deliver IP4X protection without the need for end caps or tools. Designed for effortless installation on thin or thick panels, they save time and reduce labor costs while offering a 10A double pole, auto-switched outlet for reliable performance. Backed by the Energy Safe Certificate, the SW & NW Series are the smarter choice for modern workspaces.
Description
The SW and NW Series from CMS Electracom represent the latest generation of socket outlets designed for speed, safety, and flexibility. Engineered with integrated softwiring couplers that comply with the AS/NZS61535.1 connector standard, these outlets deliver IP4X protection—eliminating the need for safety end caps or tool-only removable connectors.
Installation is effortless: no tools are required for mounting on thin or thick panels, significantly reducing labor time and costs. Each unit features a 10A double pole, auto-switched outlet for reliable performance and is backed by the Energy Safe Certificate for complete peace of mind.
Built on the principles of softwiring, also known as modular wiring, this system replaces traditional hardwiring with a plug-and-play backbone that connects ceiling, workstation, and floor seamlessly. Softwiring enables quick installation, easy reconfiguration, and material reuse—minimizing waste and maximizing flexibility for future expansion. Perfect for modern workspaces, the SW & NW Series delivers smarter power distribution without compromise.
Resources
Features
- Integrated AS/NZS61535-compliant softwiring couplers
- IP4X protection – no end caps required
- 10A double pole, auto-switched outlet
- Tool-free ‘snap-fit’ installation for thin or thick panels
- Built-in moulded connectors and locking latches
- Modular design – plug together for multiple outlets
- 50mm socket centres
- Single cut-out mounting
- Two standard colours: black & white
- Softwiring leads in multiple lengths (500mm–5000mm)
- Interconnecting leads: 2.5mm flexible cable, rated 20A
- Optional 4sqmm conductor for long runs
- T-piece splitter for directional cable separation
- Starter boxes for ceiling, floor, or wall
- Colour-coded connectors for clean/dirty power circuits
- All components are reusable
Benefits
- Installed rapidly – saves time and labour
- Reconfigured quickly – perfect for dynamic workspaces
- Expandable with ease – no dismantling existing wiring
- Secure connections – integral retention clips
- Maximum flexibility – modular, reusable components
- Space-efficient – compact design with 50mm centres
- Future-proof – supports easy expansion and reconfiguration
- Compliant & safe – AS/NZS61535 standard and Energy Safe certified
